Description
Product Overview

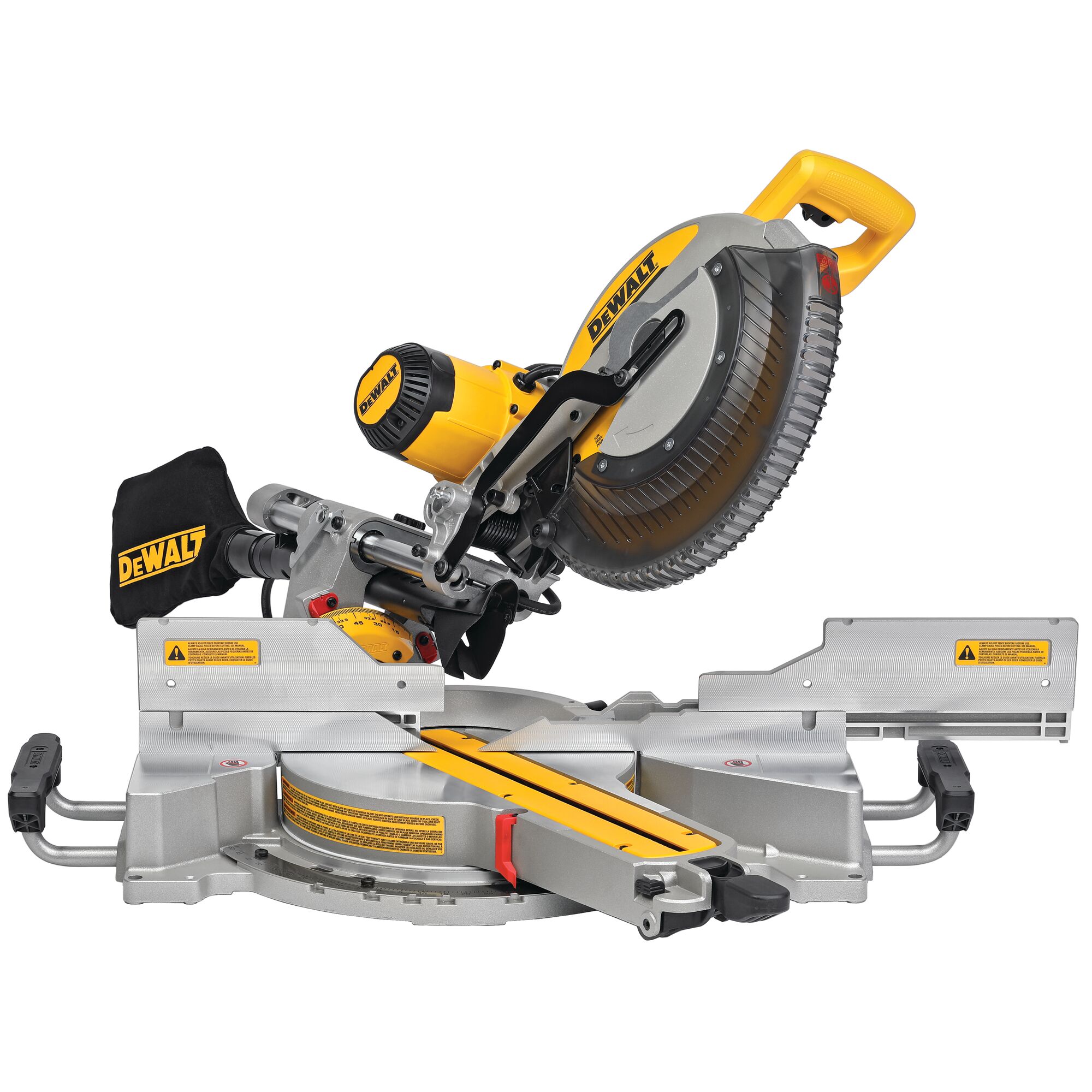

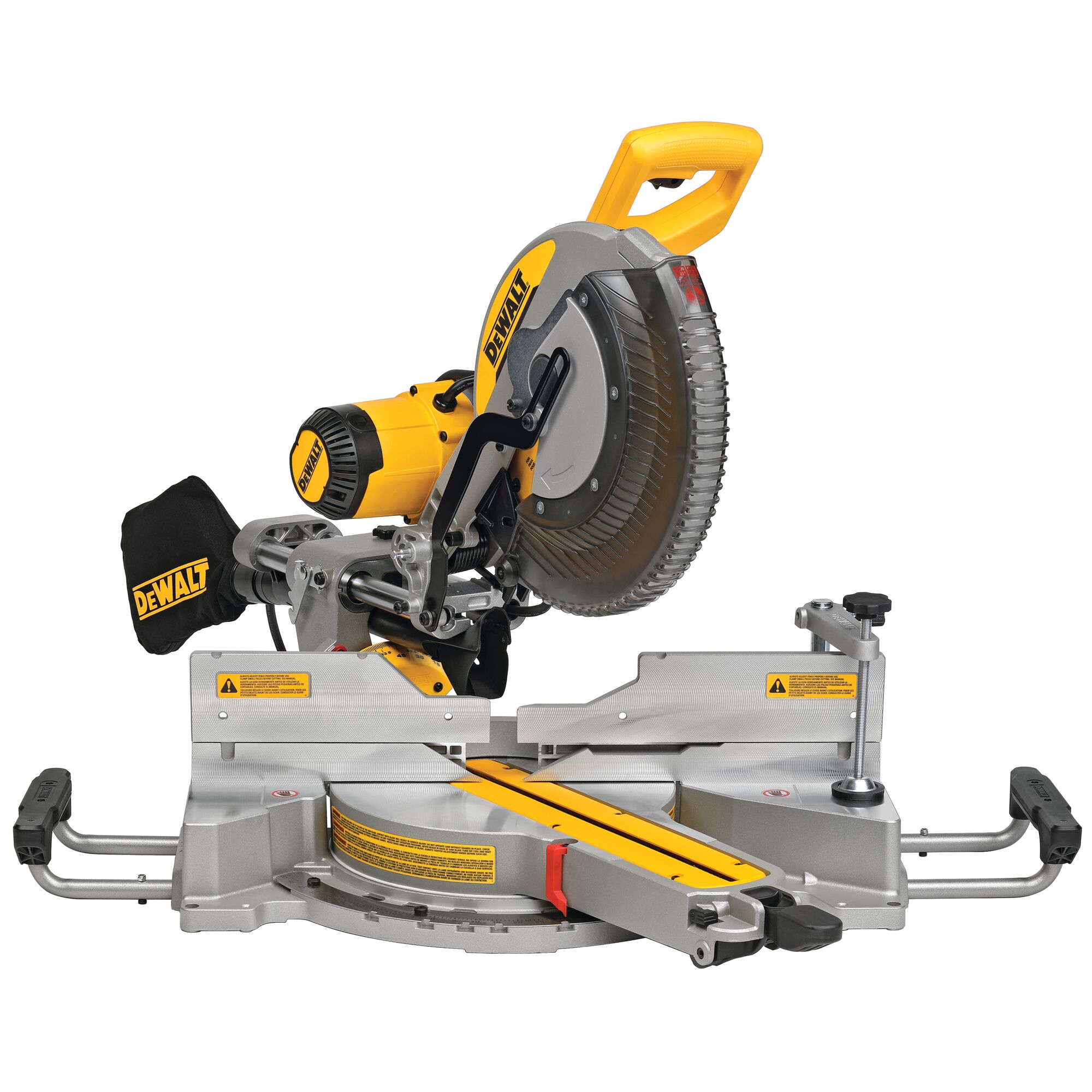

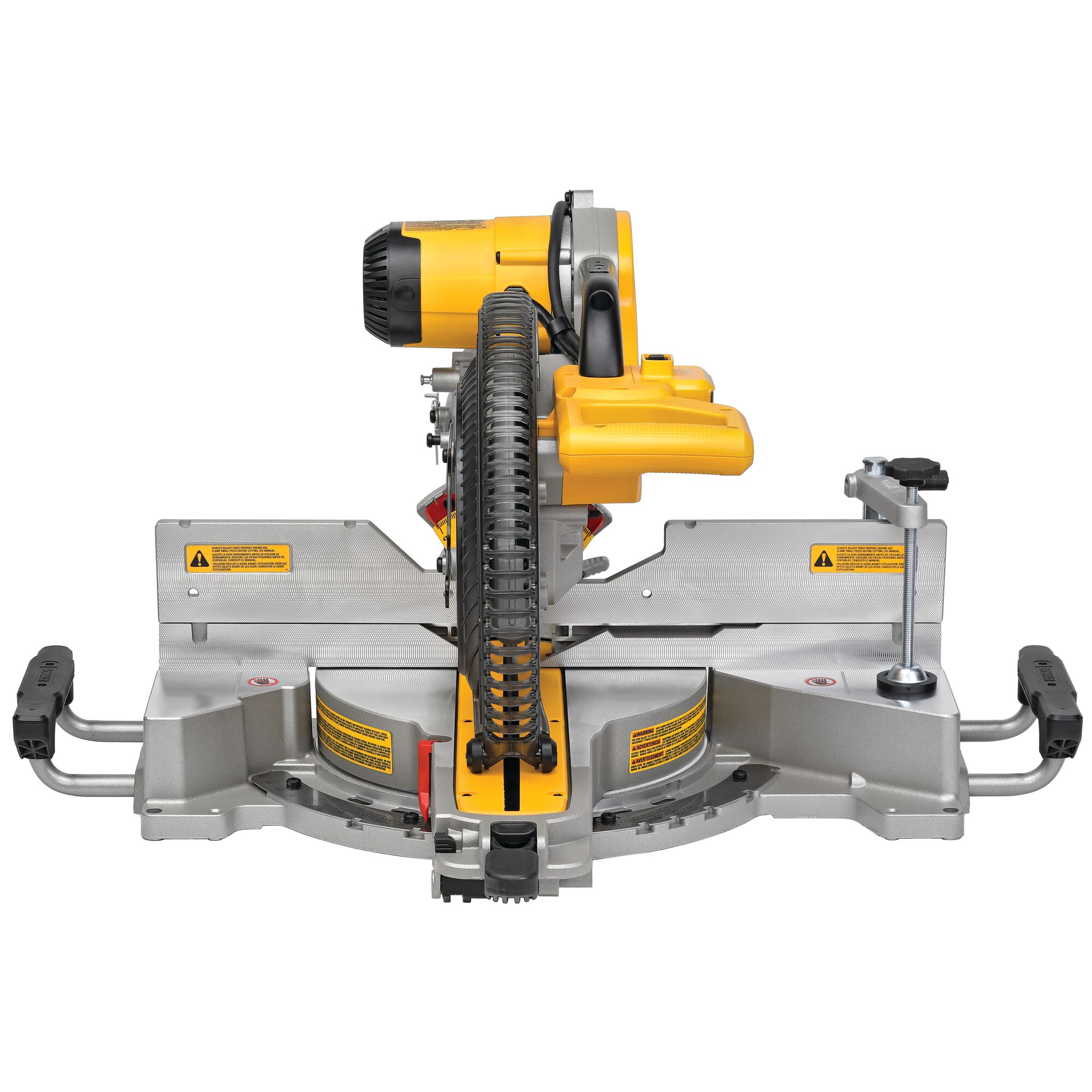

The 12 in. Double Bevel Sliding Compound Miter Saw has a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication. Tall sliding fences support 7-1/2 in. of nested crown and 6-3/4 in. of base molding vertically. Exclusive Back Fence Design cuts up to 2×14 dimensional lumber at 90 lb increased miter capacity of 60 lb (R) and 50 lb; (L) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.
Additional Features
- LARGE DUAL SLIDING FENCE: Provides maximum support in large material cuts at any angle or combination of angles
- COMPACT & LIGHTWEIGHT: Huge cut capacities, with a lightweight compact design for easy transport around the jobsite
- XPS SHADOWLINE: Provides fast accurate alignment of the blade with no adjustment required
- STAINLESS STEEL DETENT PLATE: Robust and easy to recalibrate, with common angles at 0, 12.25, 15, 22.5, 31.6 and 45 degrees
- AIRLOCK DUST PORT: AirLock compatible dust extraction for simple connection
- CAM LOCK MITRE CONTROL: Makes mitre setting faster and easier, allowing to quickly adjust angles between 0° – 50° left and 0° – 60° right
- DOUBLE BEVEL: Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right
- DEPTH STOP: Allows the adjustment of the cutting depth for grooving and rebating applications
- MACHINED BASE & FENCE: Designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy
- 3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration
Includes
- (1) 305mm Mitre Saw
- (2) Base Extensions
- (1) Blade Wrench
- (1) 60 Tooth Blade
- (1) Dustbag
- (1) Material Clamp
Specifications
|
Blade Bore [Metric]
|
30 mm
|
|
Blade Speed
|
1900-3800 rpm
|
|
Max. Cutting Capacity (45°/45°) [Metric]
|
211 x 63 mm
|
|
Max. Depth of Cut [Metric]
|
170 mm
|
|
Saw Blade Thickness [Metric]
|
2.6 mm
|
|
Bevel Capacity
|
49°/49°
|
|
Max. Cutting Capacity (90°/90°) [Metric]
|
303 x 110 mm
|
|
Product Width [Metric]
|
470 mm
|
|
Possible Mitre Angles
|
50°/60°
|
|
No Load Speed (RPM)
|
1900-3800
|
|
Max. Cutting Capacity (45°/90°) [Metric]
|
211 x 112 mm
|
|
Product Height [Metric]
|
396 mm
|
|
Product Weight [Metric]
|
25.5 Kg
|
|
Blade Diameter [Metric]
|
305 mm
|
|
Supplied in Storage Case Indicator
|
No
|
|
Uncertainty K1 (Vibration)
|
1.5 m/s2
|
|
Max. Cutting Capacity (90°/45°) [Metric]
|
268 x 63 mm
|
|
Power Source
|
Corded
|
|
Packaging
|
Carton
|
|
Power Input
|
1675 W
|
|
Product Length [Metric]
|
770 mm
|
